ECG holter BI9100

Brand: Biomedical Instruments

Price: 0.00‎€

The new digital ECG rhythm HOLTER recorder BI9100 is:

Compact and lightweight: 80x59x18 mm, weight: 63 g.
Water-resistant (IPX6).
Multi-functional (multiple channels, multiple days, multiple recording modes).
User-friendly with a large screen and functional buttons.
Functional: The recorder can be placed on the patient outside the clinic/lab. The programming of the recorder, cable conductivity, and ECG signal quality are displayed on the screen independently of the analysis computer.
Cost-effective in use, powered by 1 AA alkaline battery.

Features:

Fully programmable, high sampling rate recording up to 32,000 Hz, without data compression, with 24-bit resolution.
Color LCD screen for ECG display, programming instructions, or visual confirmation of correct electrode placement.
Removable 32 GB SD digital memory card for uncompressed data recording and transfer to PC for analysis.
7-lead ECG recording cable for 3-channel recording.
Low power consumption (one AAA battery) for up to 4 days of continuous recording. 30-day continuous recording possible with battery replacement.
Pacemaker detection.
Capability to record patient activity and movement.
Carrying case with belt for patient use.

ECG RECORDING ANALYSIS SOFTWARE: ECG Lab

Detects pathologies according to international protocols (AHA), offering effective and reliable results.

The user can select tools provided by the software for quick and easy HOLTER analysis:

Comprehensive 24-96 hour display of all arrhythmias – ECG rhythm HOLTER system Biomedical Instruments
ECG display at speeds of 6 to 50 mm/s
Full ECG display in alternate views

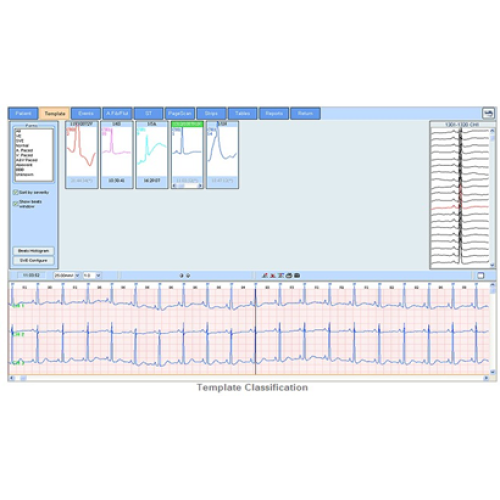

QRS classification into templates and reclassification beat-by-beat
Creation of new templates
4-day arrhythmia trends
4-day ST analysis

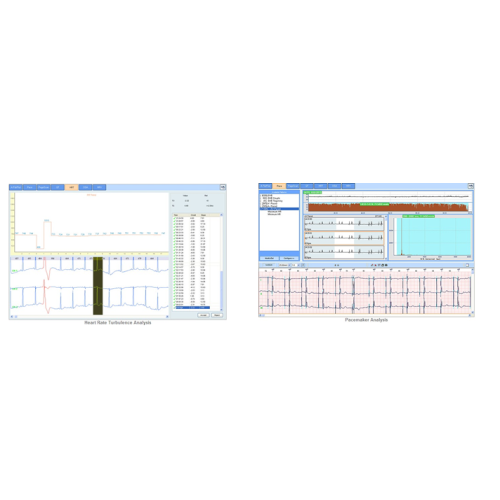

Pacemaker rhythm analysis
ST analysis on all three ECG channels
HRV analysis in time and frequency domains
QT analysis

Sleep apnea syndrome (obstructive type) analysis during sleep.
